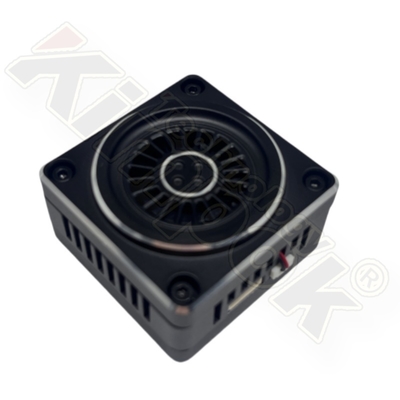

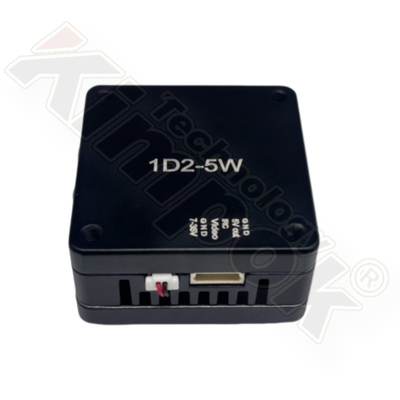

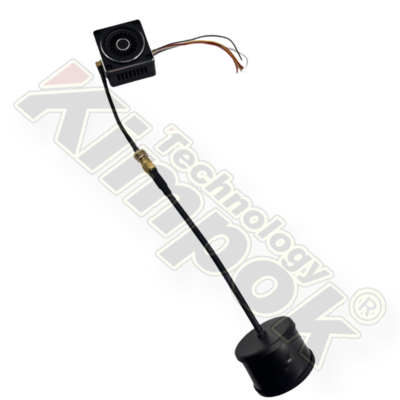

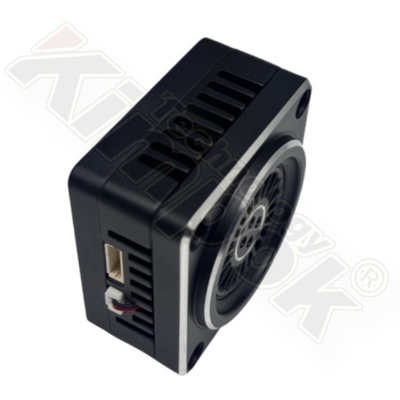

1.2G 5W Drone VTX Analog Video Transmitter 1.2GHz Image Transmission UAV RC Drone 9CH VTX

1.2G 5W Drone VTX Analog Video Transmitter 1.2GHz Image Transmission UAV RC Drone 9CH VTX

I. Specifications

1. 9CH 1.2G frequency range: (1080MHz-1360MHz);

2. Max power: 5W (25mW/5000mW, two level adjustable);

3. Input voltage: DC 7V-36V, supporting 2-8S battery input

4. Antenna connector: MCX

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy shell, heat sink&fan

7. Hole spacing: 30.5mm*30.5mm /ø3.0mm

8. Dimension: 38mm*38mm*20.7mm

9. Weight:38g

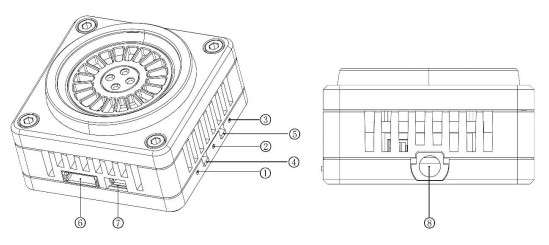

II. Function Introduction

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power indicator: Green LED

4. Band & Channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. Cooling Fan Power Cable Holder

8. MCX antenna connector

III. Control method and LED indicator

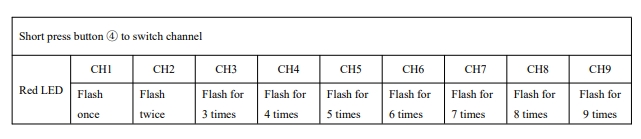

1. Button 4 is used to switch band and channel; every time when button 4 is pressed for a short time to switch to the next channel, the red LED 1will flash, 1.2.3.4.5.6.7.8.9 in turn. The operation can be cyclic; see the following diagram for details!

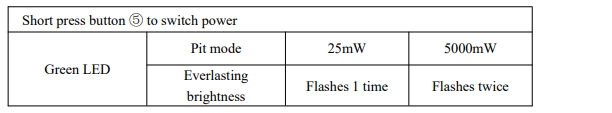

2. Button 5 is the power adjustment button, each short press switches the power by one step, cycling between the two steps of 25mW and 5000mW. The green LED is the power indicator, the status is shown in the following figure, 25mW blinks once, 5000mW blinks twice. Press and hold for 3 seconds to enter pit mode, the green light is always on. See the figure below for details!

Note: This VTX has a temperature protection function, when the temperature of the microphone is higher than 100 ℃, the transmitter power of this microphone will be reduced by one step, if the temperature is still higher than 100 ℃ continue to reduce the power by one step until the lowest power (25mW); at this time, the microphone temperature will be lowered, and when the temperature is lowered to 95 ℃, the transmitter power will be returned to the originally set power level.
