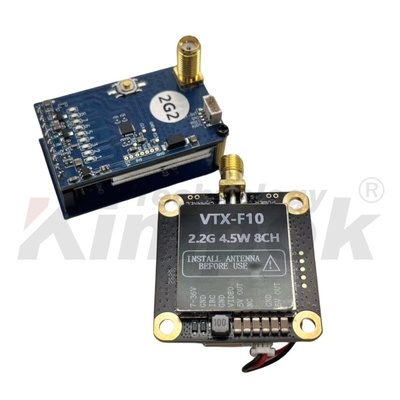

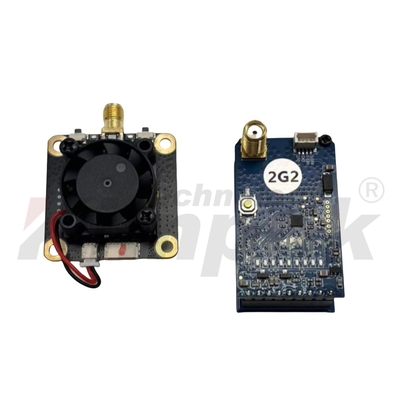

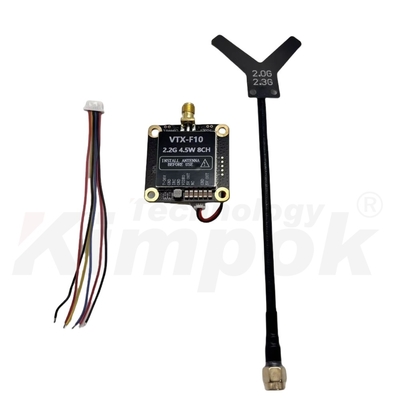

FPV Video Transmitter 2.2G 4.5W UAV VTX Drone Accessories Long-Distance Drone VTX VRX

FPV Video Transmitter 2.2G 4.5W UAV VTX Drone Accessories Long-Distance Drone VTX VRX

Video Transmitter Parameter:

I.Main Feature:

Channels 8CH;

Control Protocol: IRC Tramp, supports OSD tuning;

Allows users to define custom frequencies within 2000-2280MHz using IRC Tramp tuning software;

Power: PIT / 25mW / 800mW / 4500mW;

Efficient DC/DC power input: 7-36V;

Supports 5V voltage output;

Supports installation on flight tower (30.5*30.5MM / M3 mounts)

II.Product Specifications

Transmitter (Air Unit):

Input Voltage: 7-36V DC (2-6S)

Output Voltage: 5V/0.5A

Weight: 21.5g (excluding antenna)

Dimensions (L*W*H): 37mm*46mm*17.5mm (including SMA connector and fan) Video Format: PAL/NTSC

Number of Channels: 8CH

Channel Selection: Frequency adjustment button (short press to switch)

Transmission Frequency: 8CH (see frequency table)

Power Adjustment: Power button (short press to switch)

Power Levels: 3 levels - 25mW / 800mW / 4500mW

Antenna Connector: SMA (external thread, internal hole)

Modulation Type: FM

Video Receiver Parameter:

I.Main features

Channel 8CH;

Support FatShark,Skyzone and other glasses VR headset display straight plug and analog display and other connection use;

High-sensitivity reception -97dBm;

High efficiency DC/DC power supply support 7-36V;

Support 5V voltage output;

Short click switch channel;

II.Product Parameter

Receiver(ground end):

Input voltage:7-36V DC(2-6S)

Output voltage:5V/0.5A

Video system:PAL/NTSC

Number of channels: 8 channels

Channel selection:Short press the switch frequency

Receiving frequency: 2000-2280MHz

Sensitivity:-97dBm (MAX)

Antenna interface:SMA(outer screw inner hole)

Modulation type:FM
